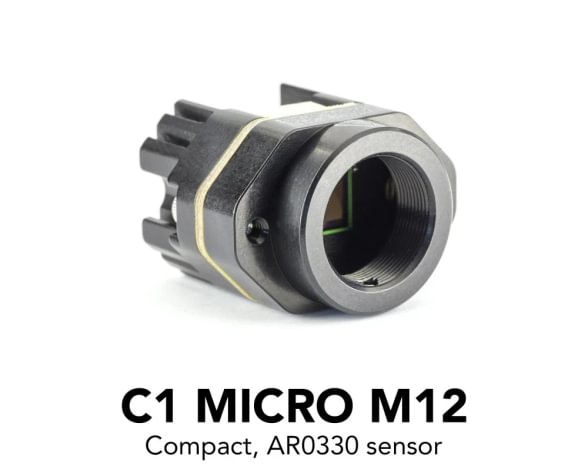

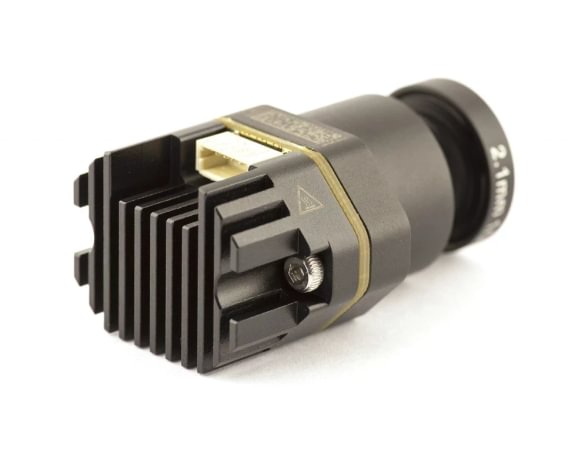

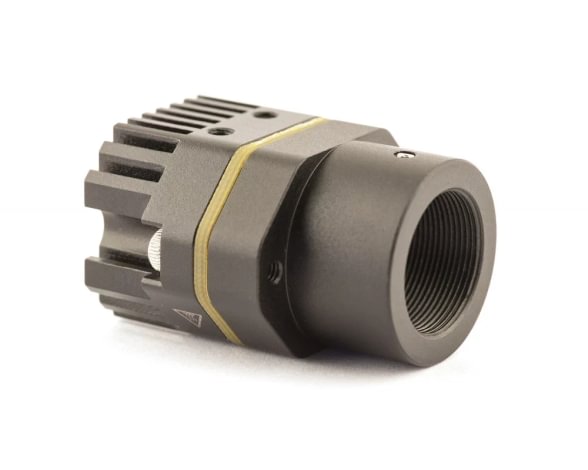

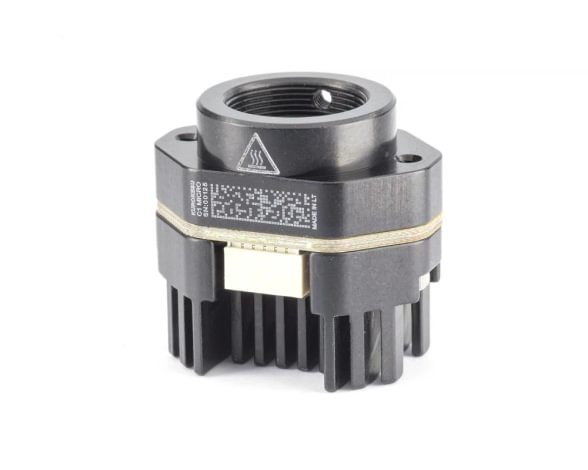

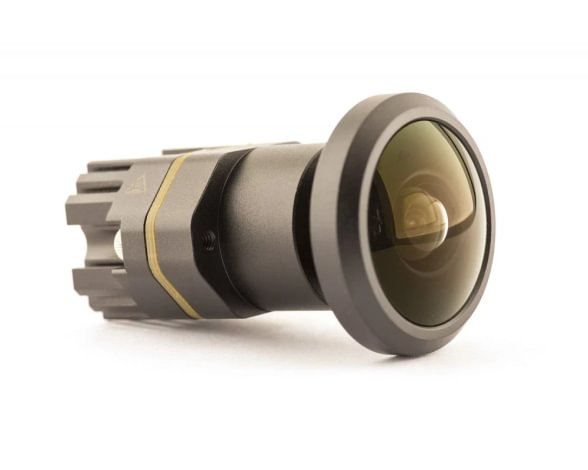

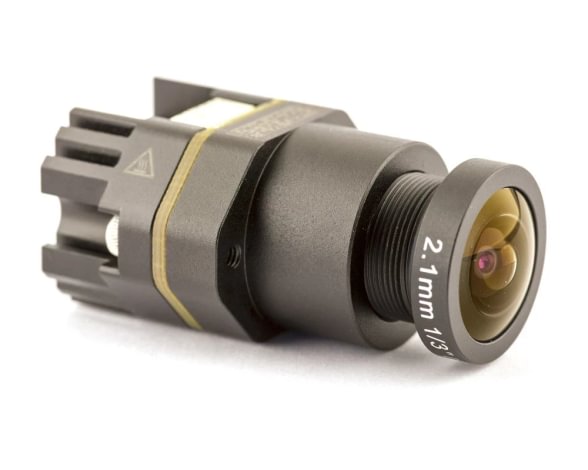

USB fotoaparatas C1 MICRO M12

C1 family camera C1 MICRO M12 with AR0330 sensor offers h.264/MHPEG/YUYV compressions over USB interface. Hardware architecture is the same as C1 original, but dimensions are much more suitable for weight and dimension critical applications.

Features:

• Aluminum case
• M12 lens mount (Also known as S-mount)
• Format: 1/3-inch (5.8mm)
• Sensor: Onsemi AR0330
• Imaging area: 2304H x 1536V (5.07mm x 3.38mm)
• Sensor pixel size: 2.2μm x 2.2μm
• Sensor dynamic range: 72.4db
• Sensor sensitivity: 1.9 V/lux-sec (550nm)
• YUY2/MJPEG/h.264 compression
• 1920x1080 @ 30fps
• UVC compatible
• USB 2.0
• Non cropped sensor operation in all resolutions
• Each camera has unique serial number
• Two versions for different lenses:

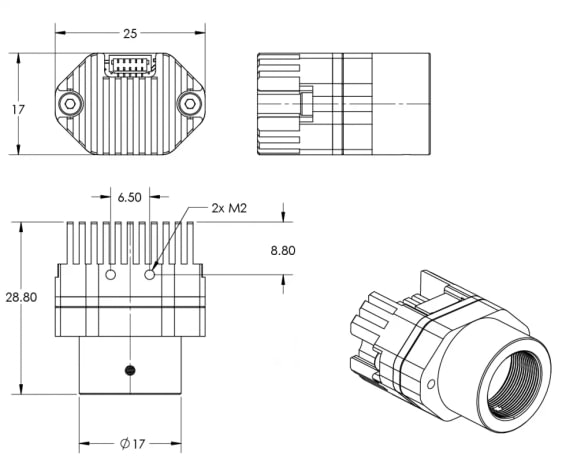

  14.7mm for telephoto lenses (total weight without a lens 12.2g)

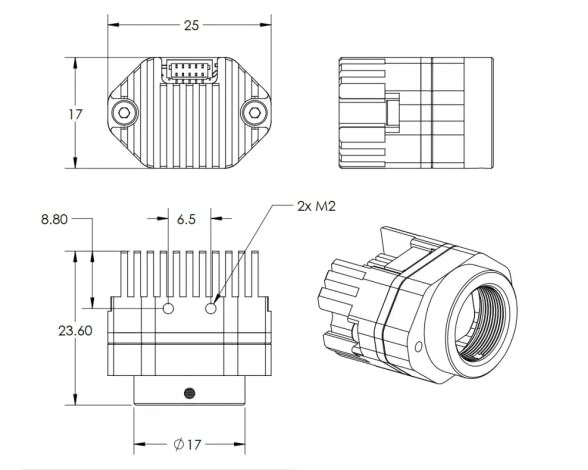

  9.5mm for most regular and short back focus lenses (total weight without a lens 11.4g)

Documentation:

• Documentation on wiki
• 3D model can be downloaded from GitHub

Notes:

• Camera has no built in filter, therefore is sensitive to IR and visible light. Select lens with caution!
• Lens not included!
• 1.5m length 1mm pitch USB cable is included

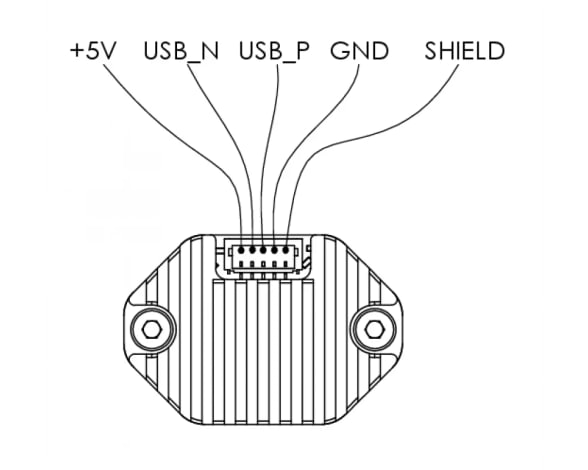

• Receptacle: Wurth Electronics 665305124022
• There are two lens mount options available. Please check lens specification before ordering if unsure.
• Due to limited heat-sink surface area it is recommended to use high conductivity mount parts
• Online lens view angle calculator
