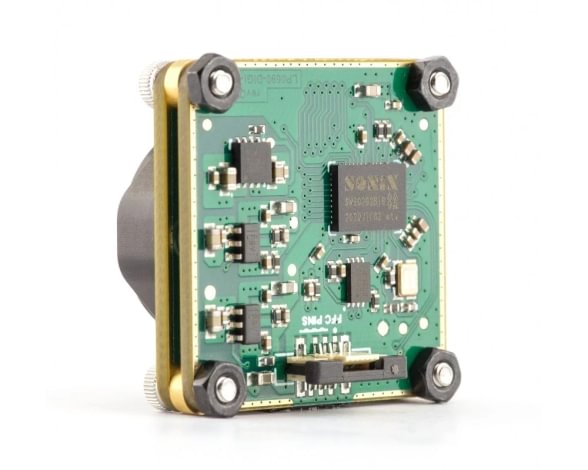

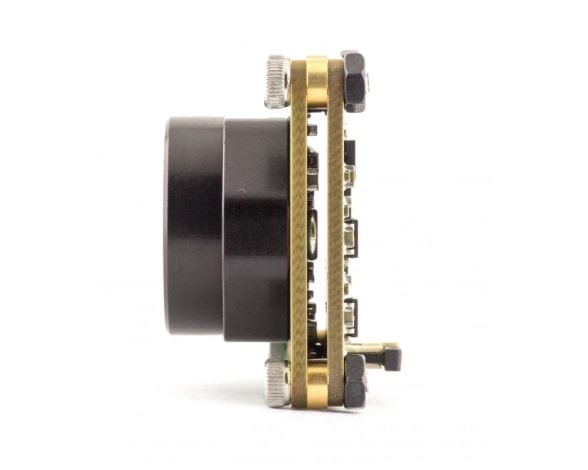

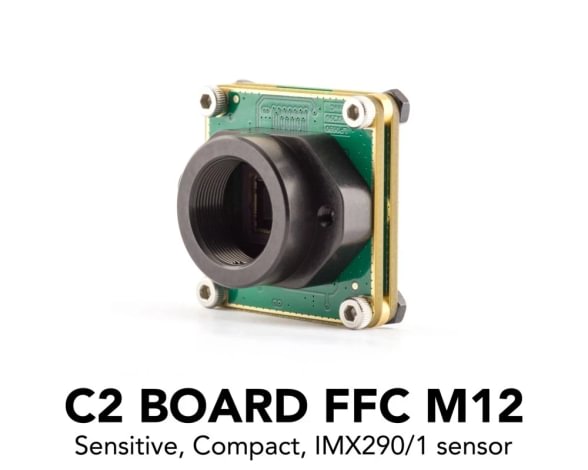

USB fotoaparatas C2 (board level with M12 lens)

New C2 family camera C2_BOARD_FFC_M12 with Sony Exmo R Starvis IMX290 sensor offers h.264/MHPEG/YUYV compressions over USB interface.

Features

• High quality industrial 6061-T6 black anodized aluminum lens
• M12 lens mount
• Format: 1/2.8-inch (6.46mm)
• Sensor: Sony IMX290
• YUY2/MJPEG/h.264 compression
• 1920x1080 @ 30fps
• UVC compatible
• Sensor pixel size: 2.9μm x 2.9μm
• Sensor dynamic range: 66db
• SNR max: 40.5db
• Operation temperature range: -45°C...+65°C
• USB 2.0
• 3D model can be found at: https://github.com/Kurokesu/3d_models
• Non cropped sensor operation in all resolutions
• Each camera has unique serial number
• RoHS, REACH, CE certified

Documentation

• Documentation on wiki
• 3D model can be downloaded from GitHub

Notes

• Normally camera is built with 380-650nm filter installed. Optionally you can order installed >850nm IR filter or filter can be removed. You can chose this option in drop down menu.
• Online lens view angle calculator
• Lens is not included

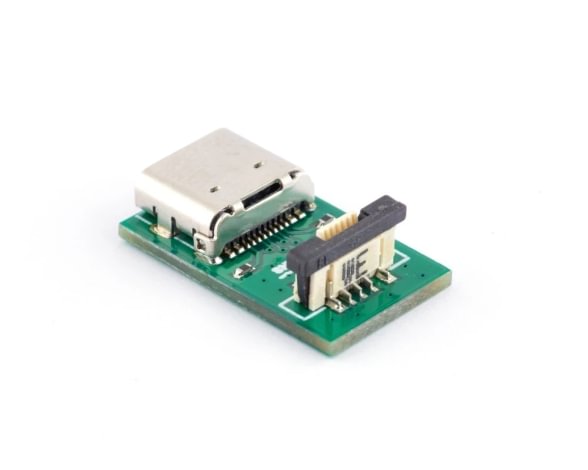

• FFC to USB adapter is optional
