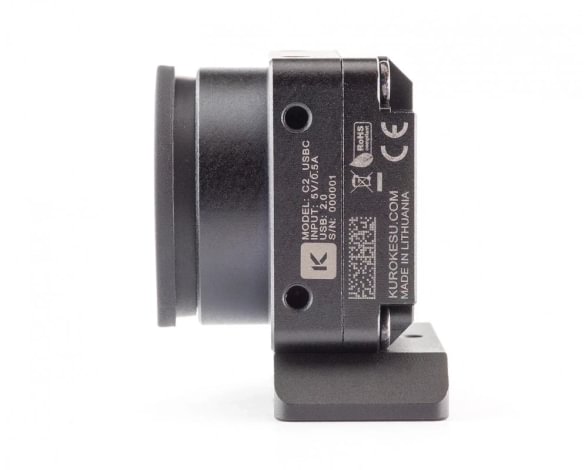

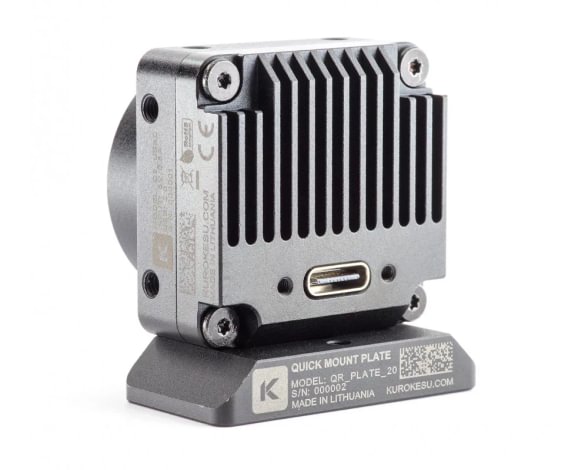

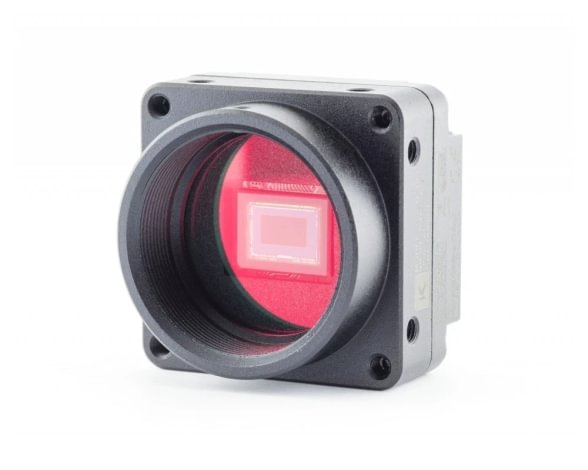

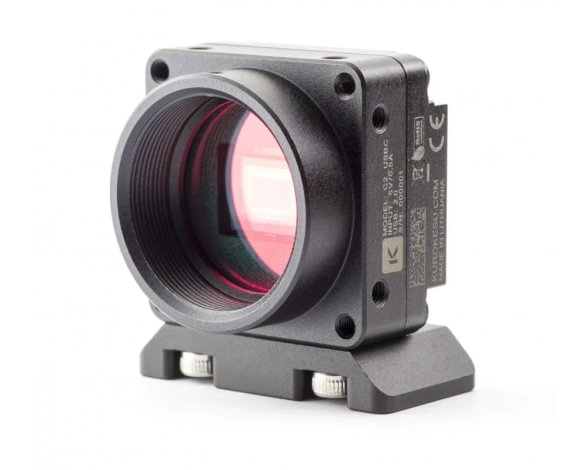

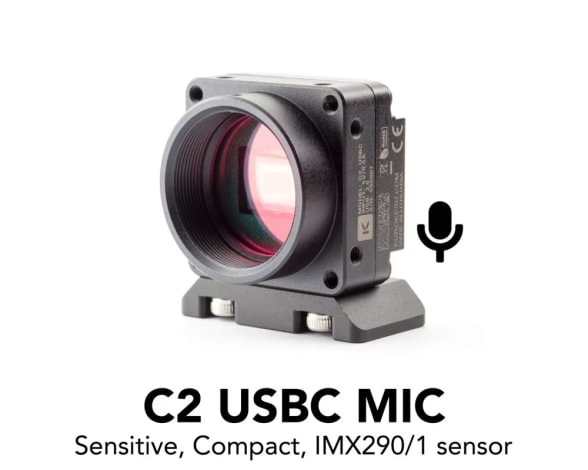

USB fotoaparatas C2 (su mikrofonu)

New C2 family camera C2_USBC_MIC with Sony Exmo R Starvis IMX290 sensor and stereo microphones offers h.264/MHPEG/YUYV compressions over USB interface

Features

• High quality industrial 6061-T6 black anodized aluminum case
• 1″-32TPI mount for CS lens
• Multiple mounting options (all side walls and top has M3 tapped holes) for machine vision or
• robotics
• Optional 1/4-20 UNC thread for tripod mounting
• Format: 1/2.8-inch (6.46mm)
• Sensor: Sony IMX290
• YUY2/MJPEG/h.264 compression
• 1920x1080 @ 30fps
• Stereo microphones
• UVC compatible
• Sensor pixel size: 2.9μm x 2.9μm
• Sensor dynamic range: 66db
• SNR max: 40.5db
• Operation temperature range: -45°C...+85°C
• USB 2.0
• 3D model can be found at: https://github.com/Kurokesu/3d_models
• Interchangeable filters (Low pass 650nm installed by default)
• Non cropped sensor operation in all resolutions
• Each camera has unique serial number
• RoHS, REACH, CE certified

Documentation

• Documentation on wiki
• 3D model can be downloaded from GitHub

Notes

• Normally camera is built with 380-650nm filter installed. Optionally you can order installed >850nm IR filter or filter can be removed. You can chose this option in drop down menu.
• Online lens view angle calculator
• Lens is not included
